Low LINE DIRECT WARPING MACHINE

High Speed Hydraulic Drum Driven Warping Machine | Suitable for Cutton & Blendded Spun Yarn

High Speed Warping Machine having well balanced steel drum with maintenance free quick acting hydro pneumatic powerful air cooled disc brake on both side of drum lost end are completely eliminated.
Provision for efficient electrical stop motions on the head stock with electrode bar and drop wires is arranged to stop beam immediately an end breaks.
Hydraulic beam doffing and lifting device to be operated by turning a knob at the side of the machine to avoid any lifting by the operator.
Hydraulic beam tension device specially designed for uniform yarn tension while beaming.
A.C.Inverter Drive of standard make with 5/7.5/10/15 HP motor of Standard make for warping speed 100 to 400 meters per min.
1 HP in built hydraulic power pack of REXROTH makes valves.
Feather touch L.E.D.pre-determined measuring preset counter provided with the machine (5 digits).

Working width (inch/mm.):	54.5” / 1400	60.5” / 1550	63.5” / 1600	68.5” / 1750	72.5” / 1850	78.5” / 2000	96” / 2450

Flange diameter (inch/mm.):	22” / 560	24” / 610	26” / 660	28” / 410	30” / 760	32” / 810

Barrel diameter (inch/mm.):	8” / 200	10” / 250	12” / 300

Shaft diameter (inch/mm.):	1.25” / 32	1.50” / 38

Speed Range(Mtr/Min.):	180 - 600

H.P.:	3	5	7.5	10 to 20

Stop Motion:	Electro Mechanical at head stock

High Speed Pneumatic Drum Driven Warping Machine | Suitable for Cotton & Blendded Spun Yarn Creel

High speed Warping Machine having well balanced steel drum with an internal expanding quick acting hydraulic break lost and are completely eliminated.
Provision for efficient electrical stop motions on the head stock with electrode bar and S.S.drop pin is arranged to stop beam immediately an end brakes.
Easy operated Mechanical beam doffing & lifting device to be operated by turning a handle at the side of machine to avoid any lifting by the operator.
Pre – determined measuring preset counter provided with the machine. (5 digit).
5/7.5/10 HP A.C Inverter drive complete with 5/7.5/10/15 HP AC Standard make motor for warping speed 400 meters per min.
Braking system Hydro-pneumatic type.

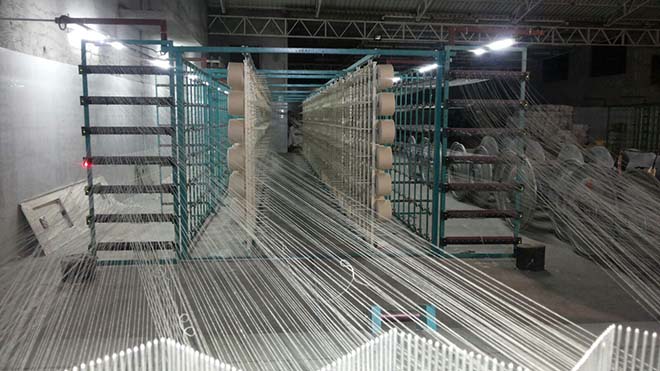

Creel

Capacity	400 to 720 ends

Pitch (Inch/mm)	7” / 175 to 15” to 375

Tensioner:	P-74 Porcelain Tensioner with Pairs of S.S. Tension Disc or Two Pole Micro Fine Tensioner with Ceramic Guide

Stop Motion	Optional at Creel

Creel Length for SF & TC =
Creel Capacity X Horizontal Pitch + 350
2 X No. of Docks

Creel Height =
No. of Decks X Vertical Pitch + 350
